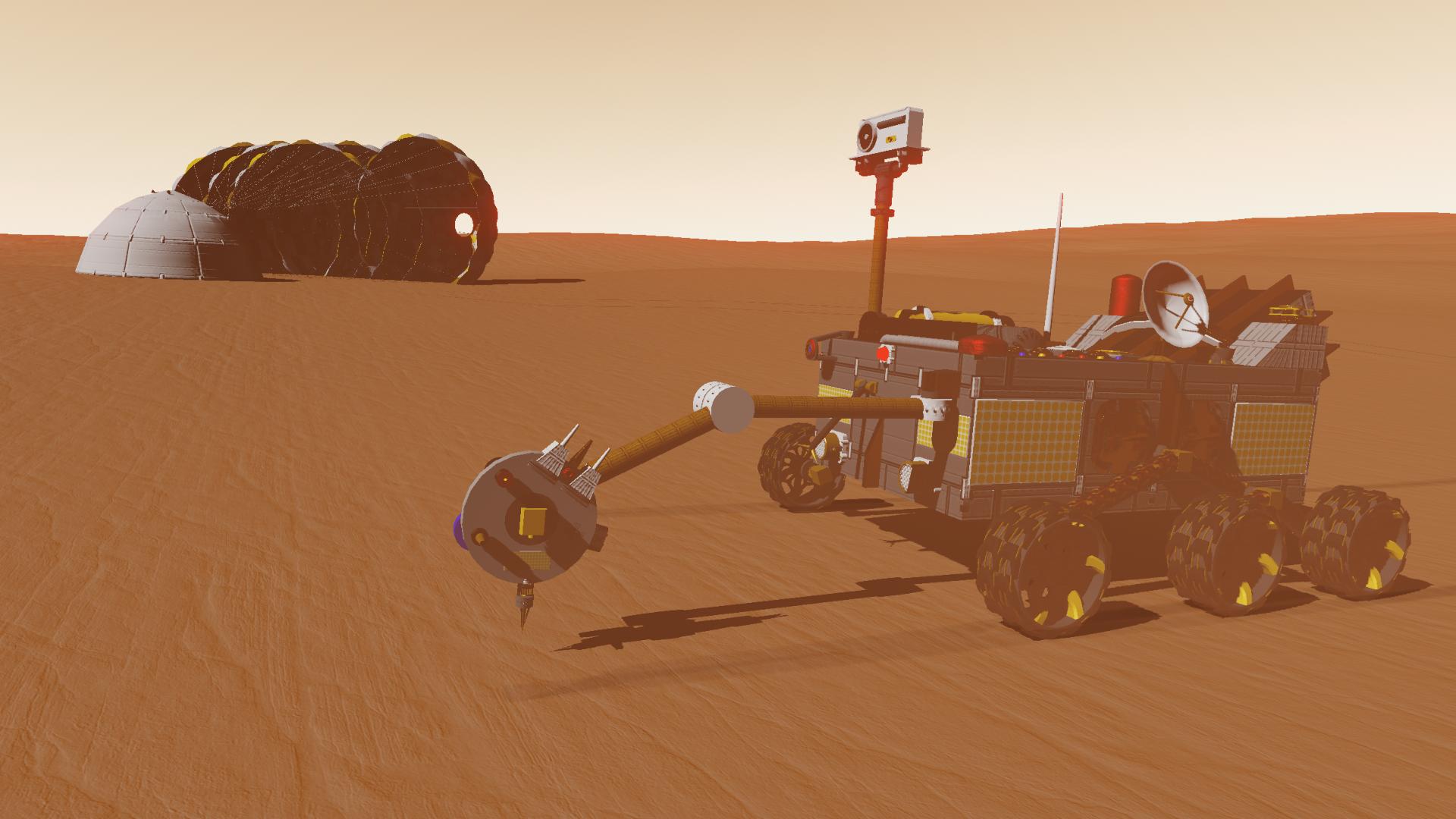

This Rover is for Cylero (as the name suggests)
I borrowed & modified a few parts from another craft, but I have learned a lot building & testing all the systems... I hope you enjoy it!
Instructions for launching & landing:
- If you launch properly & efficiently (start pitching early), you should end up in a 0 degree Low Droo Orbit (between 60-100 km) with over 2,000 m/s of delta-V left in your second stage (just under 40% fuel left). More than enough for a Trans-Cylero Injection Burn during the proper launch window.

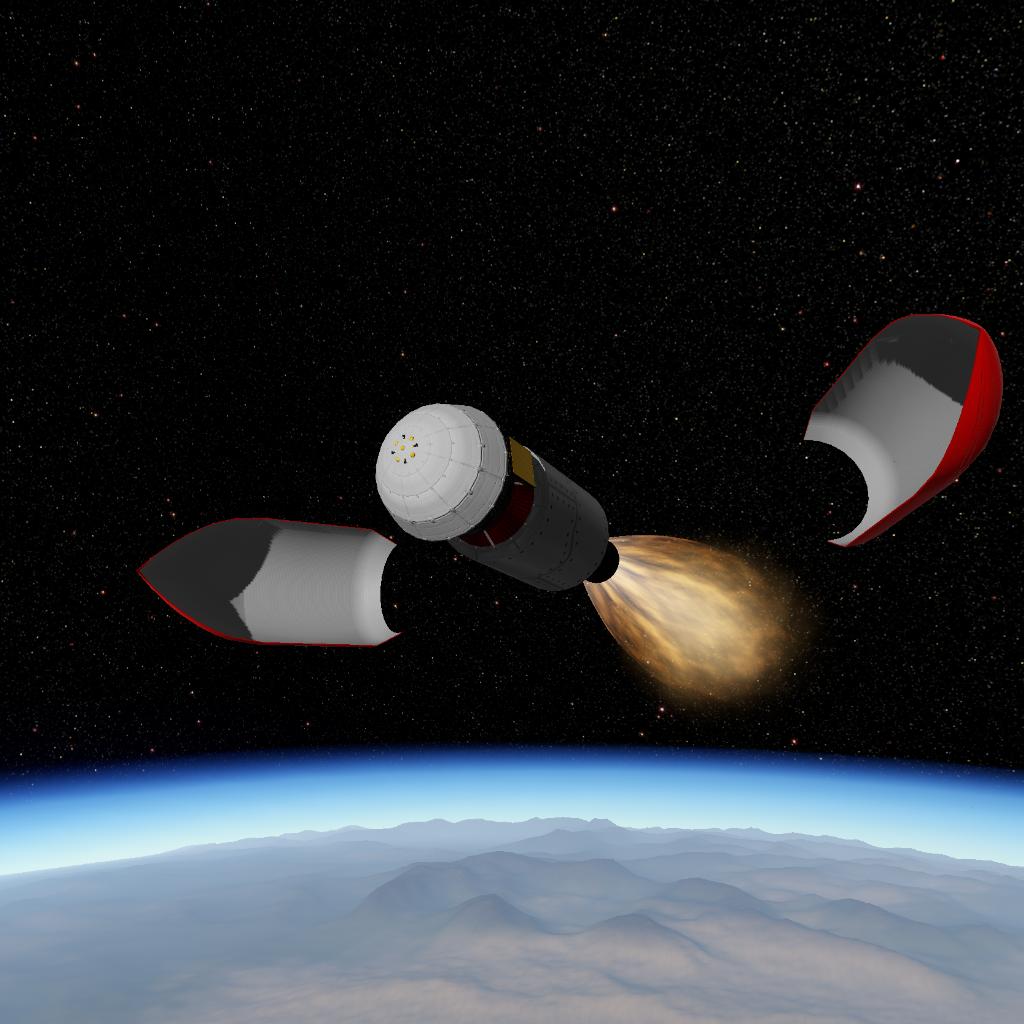

- Separate the spacecraft from the second stage after the burn, the small Cruise Stage with solar panels has plenty of fuel & delta-V for any correction burns needed along the way to Cylero.
- Once you enter Cylero’s Sphere of Influence, aim for a periapsis of about 15-17 kms above the surface for the best angle of atmospheric entry.
- Separate from the Cruise Stage a few hundred kms above Cylero before entering the atmosphere (STAGE 7) * Make sure you remain Locked Velocity Retrograde from here until landed, I also recommend locking the Brakes On to prevent the Rover from sliding downhill in case you land on a slope...
- Atmospheric Entry: let the Heat Shield slow your speed down to around 1,000-1,200 m/s (+or-), then open the Parachutes (STAGE 8)
- When your speed has slowed to around 200-250 m/s (+or-), drop the Heat Shield. It’s done its job and is no longer needed (STAGE 9)
- * Make sure your Throttle is set to 100% and you are Locked Velocity Retrograde, when your Altitude reaches around 1,750m AGL (+or-), separate the Rover from the protective shell & parachutes for the powered descent (STAGE 10)
- Bring the Rover down smoothly until you hover just above the surface (adjust the throttle as needed during the last 100-300 meters or so to control the rate of descent) then separate the engines section from the Rover (STAGE 11)
Controls:
AG 1 : Mast = Slider 1 / Slider 2
AG 2 : Antennas = Slider 1 / Slider 2
AG 3 : Rover Power = [Analog Sticks] Wheels Motors (Throttle) / Turn (Roll left+right)
AG 4 : Cargo Hold / Sensor = Slider 1
AG 5 : Manipulator Arm = Slider 1 / Slider 2
AG 6 : Drill = Slider 1
AG 7 : Front Lights
AG 8 : Rover RCS (use to flip back up in case you fall over)
Translate Forward = Wheels Motors Turbo
Translate Up/Down = Suspension / Tilt
GENERAL INFO
- Created On: iOS
- Game Version: 0.9.404.0
- Price: $29,359k
- Number of Parts: 471

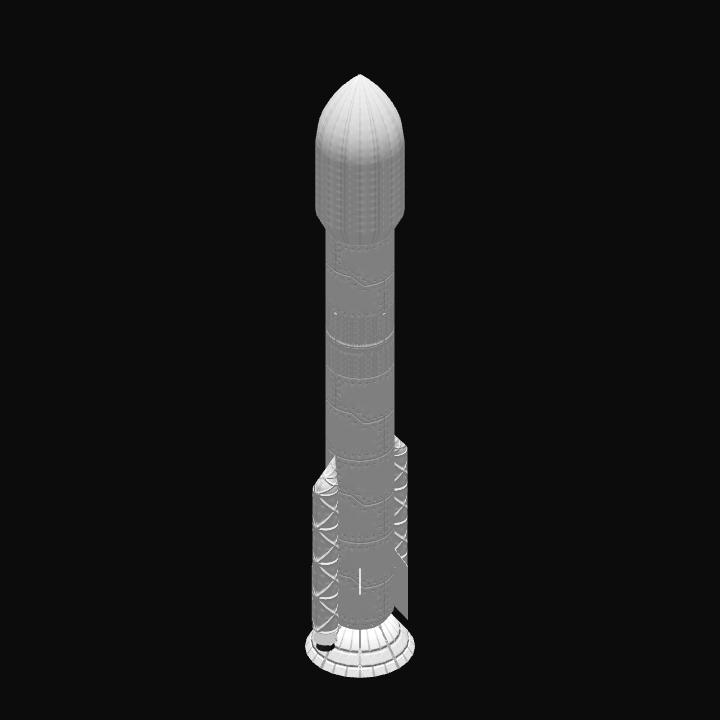

- Dimensions: 51 m x 8 m x 9 m
PERFORMANCE
- Total Delta V: 7.0km/s
- Total Thrust: 12.7MN
- Engines: 27
- Wet Mass: 3.71E+5kg
- Dry Mass: 46,157kg
STAGES
Stage | Engines | Delta V | Thrust | Burn | Mass |
---|---|---|---|---|---|
1 | 4 | 3.0km/s | 5.0MN | 2.5m | 3.69E+5kg |
2 | 0 | 0m/s | 0N | 0s | 3.14E+5kg |
3 | 0 | 0m/s | 0N | 0s | 1.08E+5kg |
4 | 1 | 3.4km/s | 875kN | 4.1m | 1.08E+5kg |
6 | 7 | 256m/s | 46kN | 1.7m | 19,373kg |
10 | 8 | 393m/s | 118kN | 37s | 12,180kg |
