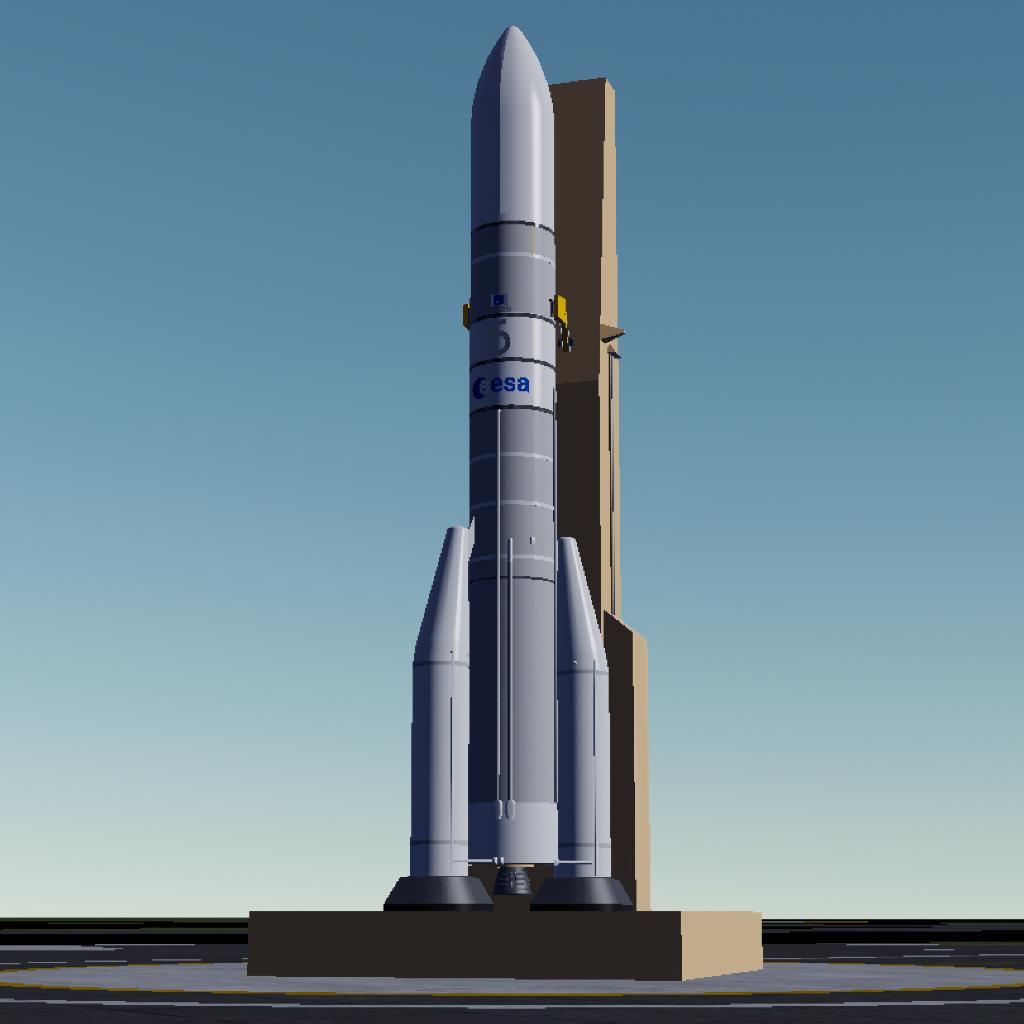

Ariane 6 comprises three stages: two or four boosters, and a main and upper stage – known together as the central core.

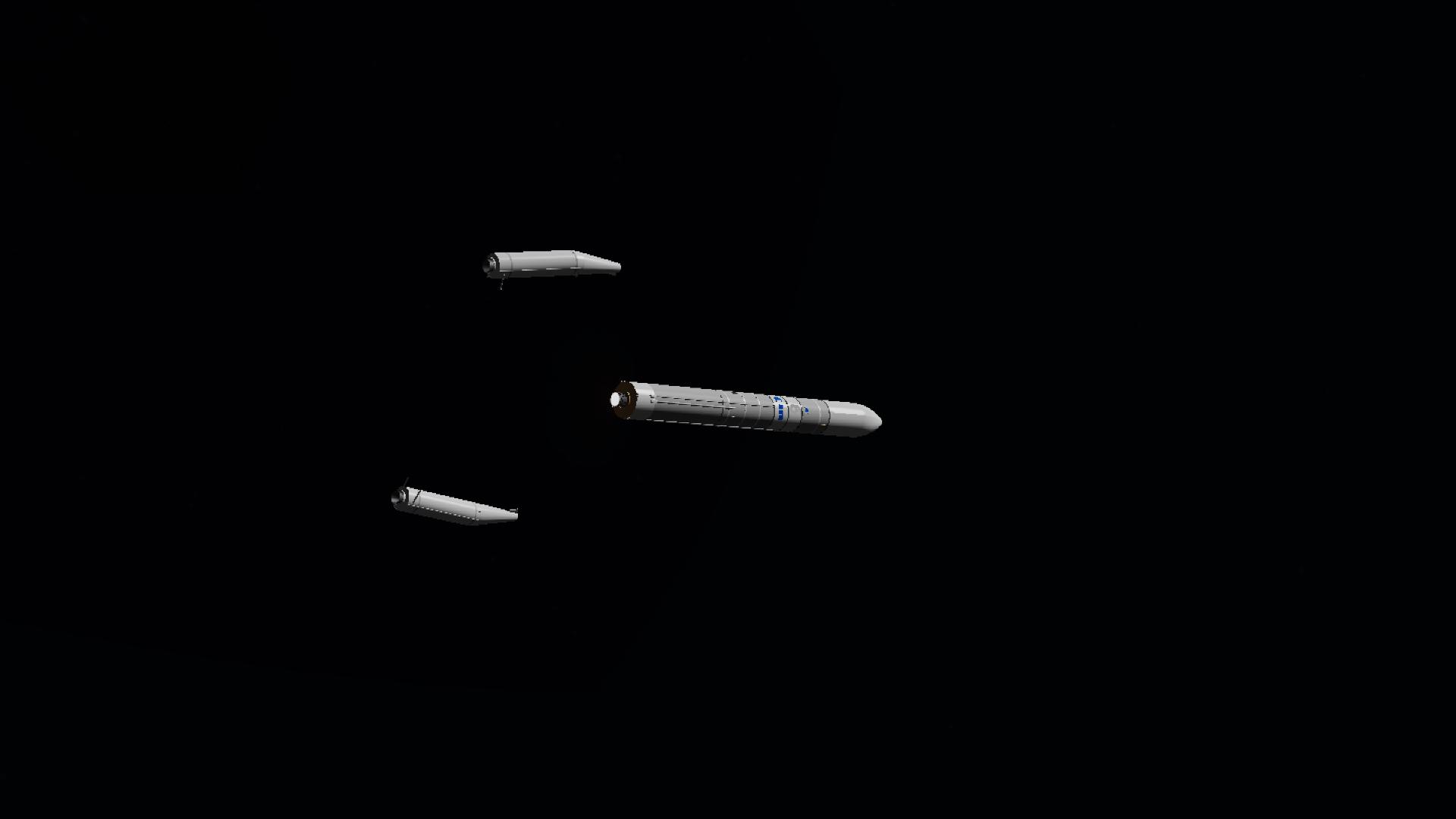

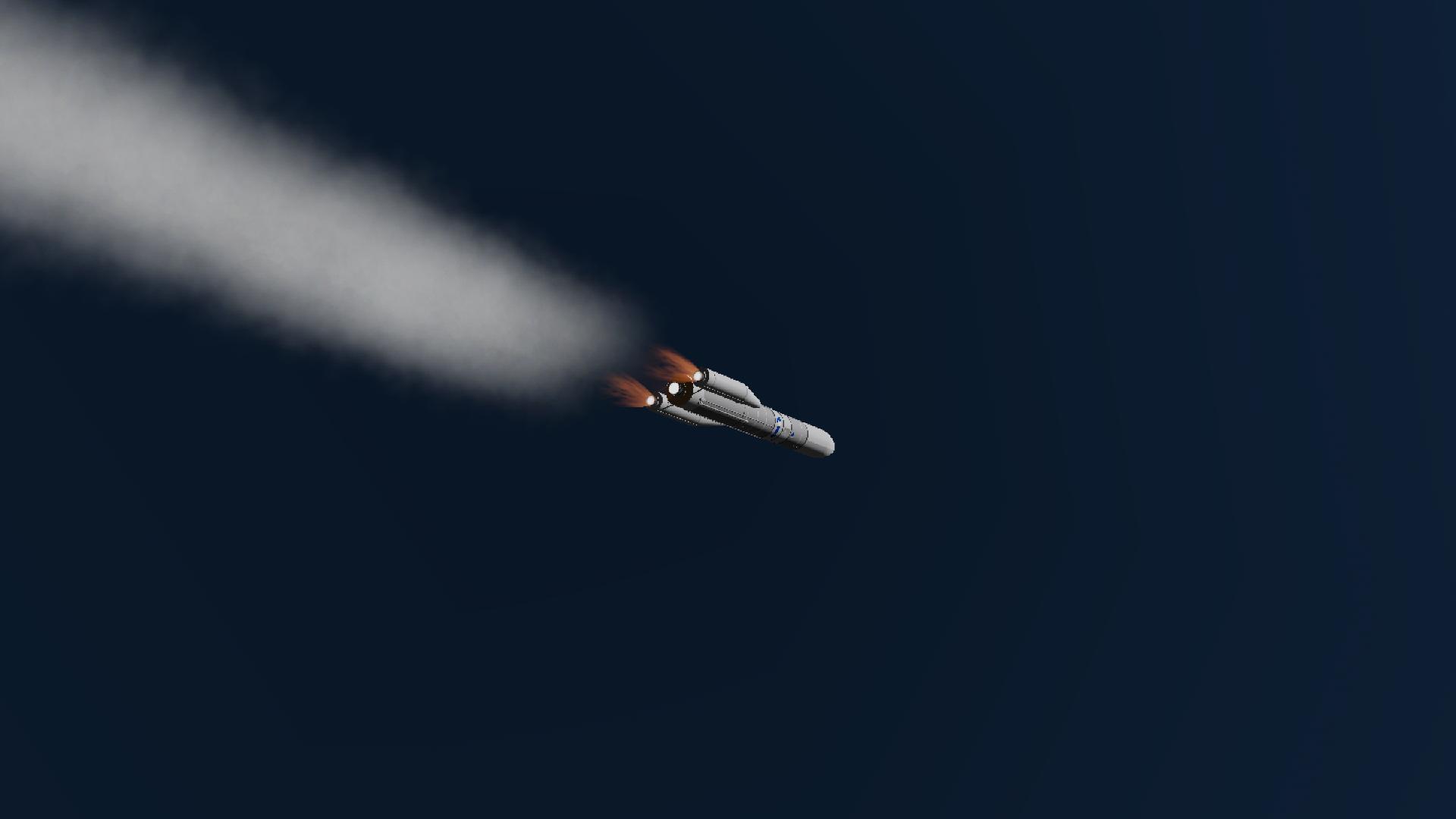

The main stage together with the solid rocket boosters propels Ariane 6 in the first phase of flight. The core stage is powered by the liquid-fuelled Vulcain 2.1 – an upgraded engine derived from Ariane 5’s Vulcain 2 – and the P120C boosters provide additional thrust at liftoff.

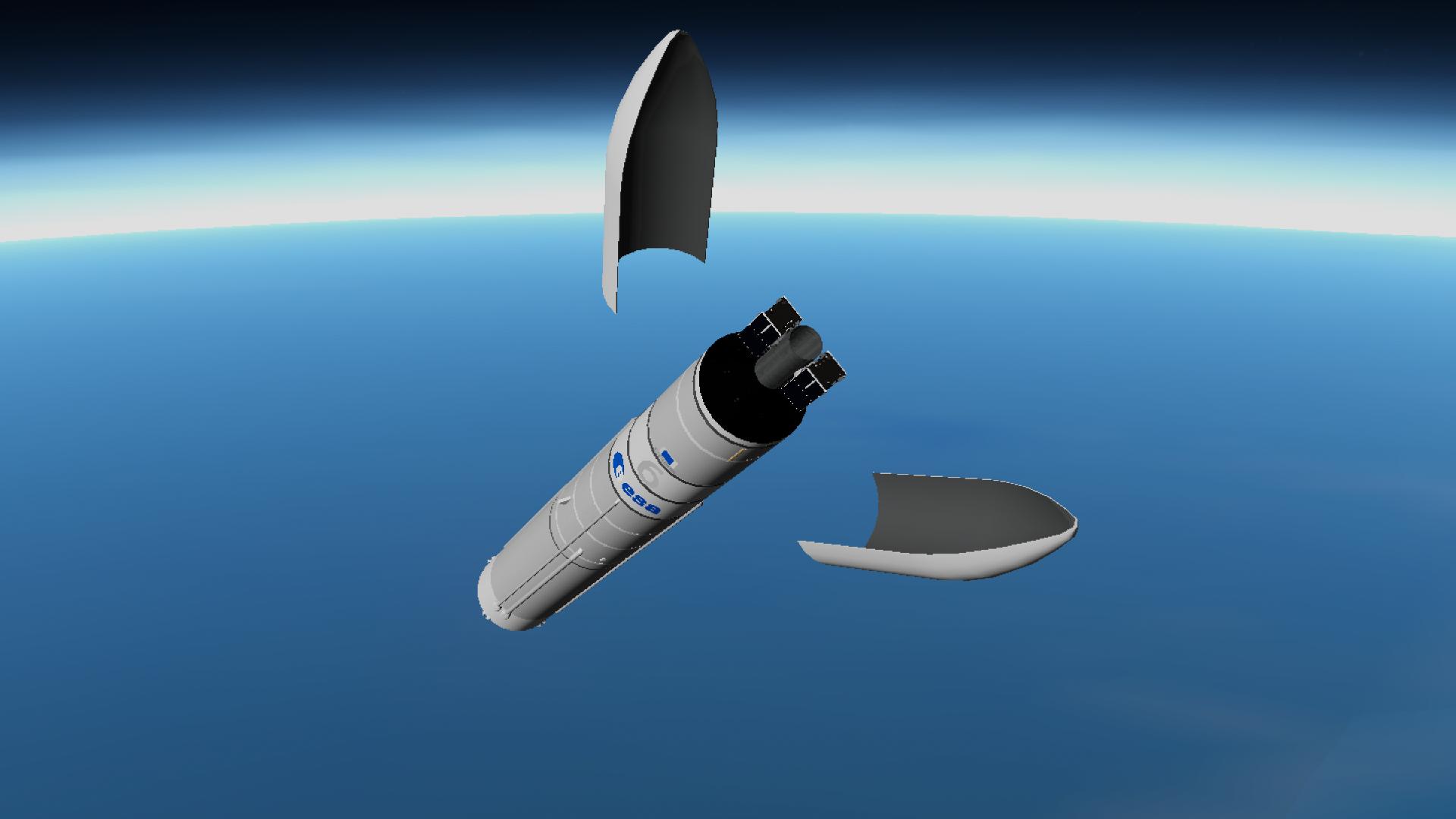

The upper stage is powered by the reignitable Vinci engine fuelled by cryogenic liquid oxygen and hydrogen. This allows Ariane 6 to reach a range of orbits on a single mission to deliver more payloads. The upper stage will typically burn multiple times to reach the required orbits. After separation of the payload, there will be a final burn to deorbit the upper stage and reduce space debris.
ARIANE 6

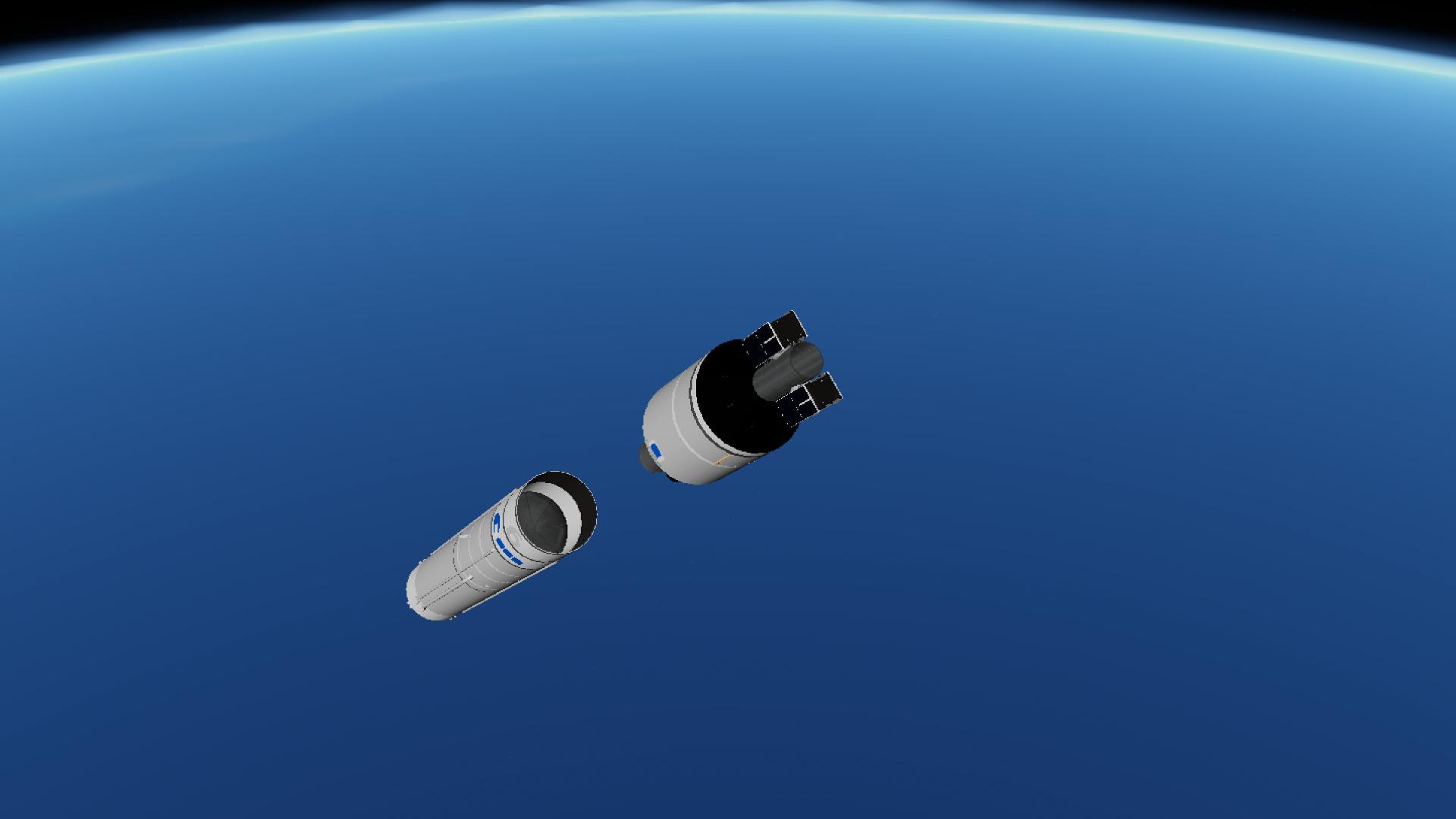

SECOND STAGE
European Space Agency :
ARIANE 6 OVERVIEW BY ESA
Don't forget to upvote
GENERAL INFO
- Created On: Android
- Game Version: 1.3.117.0
- Price: $26,842k
- Number of Parts: 236

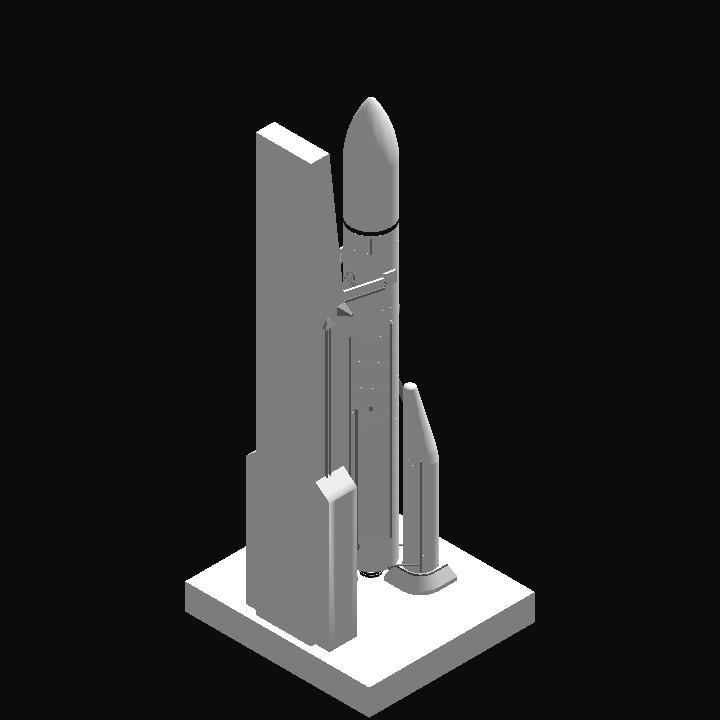

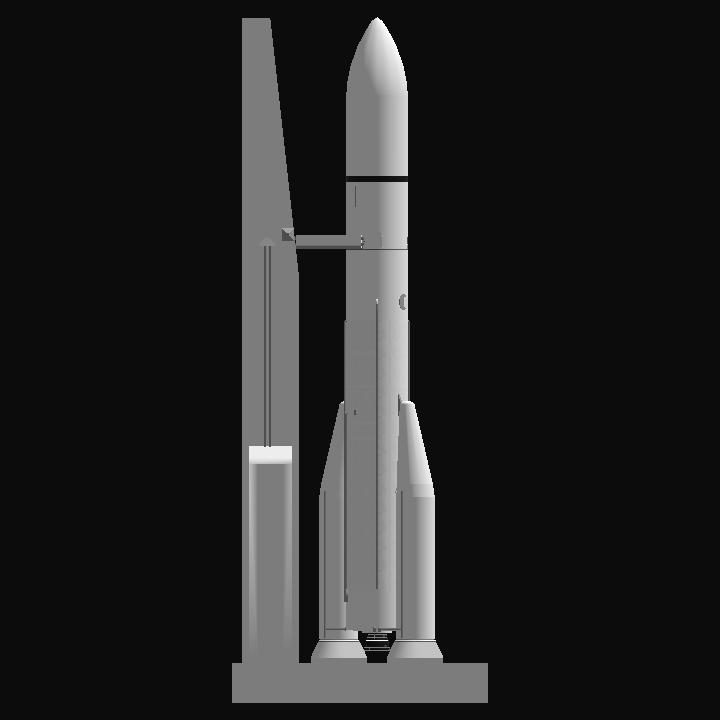

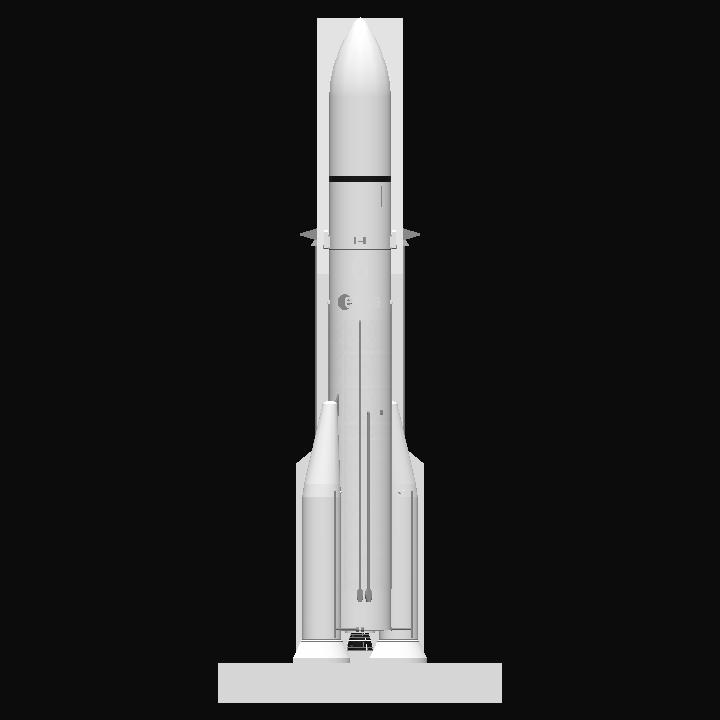

- Dimensions: 60 m x 25 m x 23 m
PERFORMANCE
- Total Delta V: 12.1km/s
- Total Thrust: 11.3MN
- Engines: 8
- Wet Mass: 5.6E+5kg
- Dry Mass: 97,621kg
STAGES
| Stage | Engines | Delta V | Thrust | Burn | Mass |
|---|---|---|---|---|---|
| 1 | 1 | 1.3km/s | 1.3MN | 7.8m | 5.6E+5kg |
| 2 | 2 | 2.2km/s | 9.6MN | 78s | 5.09E+5kg |
| 3 | 0 | 0m/s | 0N | 0s | 2.1E+5kg |
| 6 | 1 | 8.7km/s | 180kN | 15.0m | 30,433kg |
