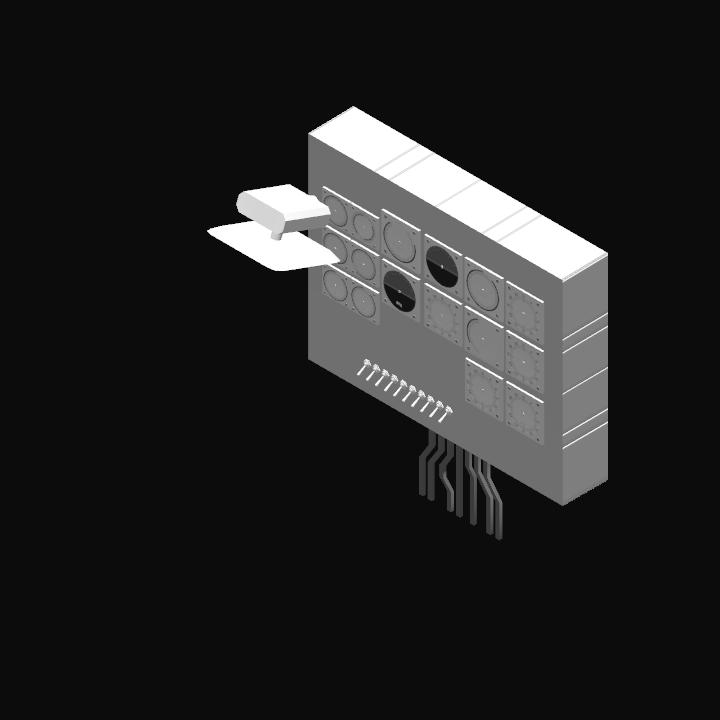

Mostly based on the Cessna 172 instrument panel.
Units:
Altimeter: 1km / 10km
VSI: 5m/s / 25m/s
Airspeed: 50m/s / 500m/s
Accelerometer: 1G / 5G
Gravimeter: x / 40m/s
Stopwatch: 1s / 60s
Compass, Roll Indicator: 1° / 360°
SolRad, Fuel, Power: Not configured yet
To do:
- Attach labels to gauges when possible
- Finish everything else
- Add CDI 1 (target)
- Add CDI 2 (0,0)
- Add radio panel; Comms, Nav, ADF, DME (distance to VOR), Transponder, AHS (Altitude hold selector - basically autopilot)
- Add GS (Ground Slop) to VOR 1 for ILS
Completed so far:
Fixed ADF
Added another ADF for targets
Attached gauge to label block
Standardised z-values
Replaced SolRad with Barometer
CDI sort of finished - very finnicky
Morse code beeping for VOR ID
Lots of code moved to parts; helps with subassemblies
Radio panel: Audio panel, Radio 1, ADF
greentest
GENERAL INFO
- Created On: Windows
- Game Version: 0.9.601.0
- Price: $51k
- Number of Parts: 86
- Dimensions: 2 m x 10 m x 5 m
PERFORMANCE
- Total Delta V: 0m/s
- Total Thrust: 0N
- Engines: 0
- Wet Mass: 52kg
- Dry Mass: 38kg
STAGES
| Stage | Engines | Delta V | Thrust | Burn | Mass |
|---|
